Plastic Film Capacitors: Your Essential Guide to Understanding and Using



1.Brief Introduction of plastic film capacitors.

Plastic film capacitors, fundamental building blocks of modern electronics, play a pivotal role in storing and releasing electrical energy, shaping the very essence of circuits across diverse applications. These capacitors, distinguished by their construction and dielectric materials, stand out amidst an array of capacitor types, offering unique advantages that propel them to the forefront of electronic design.

At its core, a capacitor is an electrical component designed to store and manage charge. As voltage is applied, the capacitor accumulates energy in an electric field between its two plates, subsequently releasing it when needed. This fundamental principle finds application in smoothing voltage fluctuations, filtering noise, and tuning resonant circuits, ultimately enhancing the stability and efficiency of electronic systems.

Film capacitors, a subset of capacitors, exhibit a distinct set of characteristics that set them apart. Unlike electrolytic capacitors, which rely on electrolyte solutions, or ceramic capacitors with ceramic dielectrics, film capacitors employ thin layers of dielectric materials like polyester, polypropylene, or polycarbonate. This construction imparts remarkable properties, including high insulation resistance and low dissipation factor. Notably, film capacitors excel in applications demanding precision, reliability, and long-term stability, making them ideal choices for critical circuitry.

In circuits, film capacitors shine in a myriad of roles. They serve as essential components in coupling and decoupling circuits, smoothing voltage waveforms, and filtering undesirable frequencies. Their ability to maintain capacitance values over a wide range of temperatures and frequencies ensures consistent performance, particularly in audio, power supplies, and signal processing. Beyond these functions, film capacitors act as guardians against voltage spikes and transients, safeguarding sensitive components from damage and ensuring the longevity of electronic systems.

In a world where electronic devices thrive on seamless and efficient operation, the fundamental concept of film capacitors and their unique attributes come together to shape the landscape of modern electronics. As we delve further into their intricacies, we uncover a realm of possibilities where precision meets practicality, where energy storage harmonizes with signal integrity, and where the unassuming film capacitor holds the potential to revolutionize electronic design.

2.Types and Applications of Plastic Film Capacitor

Film capacitors, renowned for their versatility and performance, come in a variety of types, each tailored to specific applications and engineering requirements. Let's embark on a journey through the fascinating realm of film capacitor types, uncovering their unique attributes and the domains where they shine brightest.

Polyester Film Capacitors (PET):

Polyester film capacitors, often referred to as PET capacitors, stand as stalwarts of the capacitor world. Their dielectric material, composed of polyester, endows them with excellent stability and reliability. PET capacitors find their niche in audio circuits, coupling and decoupling applications, and electronic filters. Their low-cost and reliable performance make them a go-to choice for consumer electronics and industrial applications alike. Engineers appreciate their compact size, making them ideal for space-constrained designs. Polyester film capacitors are the unsung heroes, delivering dependable performance in countless devices we encounter daily.

Polypropylene Film Capacitors (PP):

Polypropylene film capacitors, or PP capacitors, boast exceptional dielectric properties, enabling them to handle high-voltage and high-frequency applications. Renowned for their low dissipation factor and high insulation resistance, PP capacitors shine in AC and pulse applications, including motor drives, power factor correction, and lighting ballasts. Their stable capacitance and ability to withstand elevated temperatures make them indispensable in demanding environments. In renewable energy systems, PP capacitors play a crucial role in enhancing power conversion efficiency and ensuring consistent operation.

Metalized Film Capacitors:

Metalized film capacitors combine the advantages of film technology with a metallized electrode structure, resulting in compact yet robust components. These capacitors excel in power electronics, where their self-healing properties mitigate failures caused by voltage spikes and overloads. Metalized film capacitors are favored for their high current-carrying capabilities and compact size, making them essential in inverters, frequency converters, and electronic ballasts.

3.Advantages of plastic film capacitors: Elevating Performance and Reliability

In the complicated realm of electronic components, film capacitors stand as beacons of reliability and efficiency, offering a range of distinctive advantages that bolster their pivotal role in countless applications. Let's delve into these advantages, shedding light on how they contribute to enhanced circuit performance and durability.

High Dielectric Strength:

Film capacitors exhibit exceptional dielectric strength, making them resilient in high-voltage environments. This attribute ensures stability and reliability, safeguarding sensitive components from voltage surges and fluctuations. In applications demanding unwavering performance under varying voltage conditions, film capacitors emerge as stalwart sentinels, fortifying circuit integrity.

Low Dissipation Factor (DF):

A low dissipation factor signifies minimal energy loss as electrical energy is stored and discharged. Film capacitors' inherently low DF minimizes heat generation, preserving energy efficiency and contributing to prolonged component life. This feature resonates particularly in high-frequency applications, where energy conservation is paramount.

Superior Insulation Performance:

The robust insulation properties of film capacitors assure circuit stability and safety. With their high insulation resistance, these capacitors prevent leakage currents, reducing the risk of short circuits and ensuring consistent operation over time. Designers can confidently incorporate film capacitors, knowing that insulation integrity is upheld even in demanding operating conditions.

Self-Healing Mechanism:

A standout feature of film capacitors is their self-healing ability. When subjected to transient voltage spikes, any potential damage to the dielectric film is automatically repaired. This intrinsic resilience prolongs the capacitor's operational lifespan and reduces the likelihood of catastrophic failures, enhancing overall system reliability.

Stable Capacitance Values:

Film capacitors stand as custodians of consistent performance. Their capacitance values remain virtually unchanged over extended periods, ensuring accurate and predictable circuit behavior. This attribute is indispensable in applications necessitating precise timing, signal processing, and data conversion.

Wide Temperature Range:

Adaptability is a hallmark of film capacitors, evidenced by their ability to function seamlessly across diverse temperature ranges. From frigid environments to scorching heat, these capacitors maintain their performance, making them reliable choices in both indoor and extreme outdoor applications.

Low ESR and ESL:

Film capacitors exhibit low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL), contributing to efficient energy transfer and signal integrity. By minimizing these parasitic effects, film capacitors optimize circuit performance, ensuring accurate signal propagation and reducing losses.

4.Reliability and Longevity of Plastic Film Capacitors

When it comes to the enduring performance of electronic components like Plastic Film Capacitors, meticulous testing and assessment are key. These capacitors, known for their remarkable attributes and wide-ranging applications, undergo stringent durability evaluations to ensure consistent and dependable operation.

Durability Testing and Aging Characteristics:

Plastic Film Capacitors undergo rigorous durability tests to gauge their ability to withstand diverse operational conditions. These tests involve subjecting the capacitors to elevated temperatures, voltage fluctuations, and varying frequencies. By simulating real-world scenarios, manufacturers ascertain the capacitors' performance under stress. Additionally, aging characteristics are scrutinized to ensure that performance remains stable over time, aligning with the demands of long-term applications.

Failure Modes and Mitigation Strategies:

Understanding potential failure modes is crucial to enhancing the lifespan of Plastic Film Capacitors. While these capacitors boast exceptional reliability, manufacturers systematically analyze failure patterns. This knowledge informs the implementation of strategic mitigation measures to counteract identified vulnerabilities. These measures could range from design enhancements to improved materials, all aimed at ensuring prolonged and trouble-free capacitor operation.

Real-Life Performance Case Studies:

The true testament of a capacitor's reliability lies in its real-world performance. Plastic Film Capacitors, with their low failure rates and stable performance, have left a lasting impact in a myriad of applications. From consumer electronics to industrial machinery, these capacitors play a pivotal role in enabling seamless operation. Take, for instance, the use of Plastic Film Capacitors in power supplies for LED lighting. Their stable capacitance and enduring performance contribute to consistent light output over extended periods, exemplifying their reliability and robustness.

In the realm of modern electronics, where reliability and longevity are paramount, Plastic Film Capacitors shine as exemplars of enduring performance. Rigorous testing, meticulous failure analysis, and real-world application case studies underscore their consistent operation and extended lifespans. As a versatile and dependable component, the Plastic Film Capacitor continues to power innovation and enhance electronic systems across industries, cementing its place as a cornerstone of reliable engineering.

5.Choosing the Right Plastic Film Capacitor for Your Needs

Selecting the ideal Plastic Film Capacitor for your application involves a thoughtful process that considers various factors to ensure optimal performance. These capacitors, known for their versatility and reliability, offer a range of options tailored to specific requirements, electrical needs, and environmental conditions.

Design Considerations:

The first step in choosing a Plastic Film Capacitor is understanding your specific application's demands. Consider the purpose of the capacitor within your circuit and the role it plays. Whether it's for energy storage, noise reduction, or voltage regulation, aligning the capacitor's characteristics with your design objectives is essential. By tailoring the choice to your application's intent, you lay the foundation for efficient and effective circuit operation.

Electrical and Thermal Requirements:

Plastic Film Capacitors come with a spectrum of electrical and thermal properties that can be matched to diverse working environments. Voltage ratings, capacitance values, and temperature coefficients are key specifications to evaluate. For instance, if your application requires high-voltage tolerance, opt for a capacitor with a voltage rating that accommodates those needs. Similarly, if your circuit operates in extreme temperatures, select a Plastic Film Capacitor designed to endure the conditions without sacrificing performance.

Application-Specific Considerations:

Certain applications demand capacitors with specific attributes. For example, in precision timing circuits, stability and low tolerance are paramount. In power electronics, low Equivalent Series Resistance (ESR) ensures efficient energy transfer. Identifying these performance requirements is crucial in making an informed choice. Furthermore, considering the long-term reliability of the chosen capacitor is essential, especially for applications where downtime is not an option.

6.Manufacturing Process of Plastic Film Capacitors

Plastic Film Capacitors, widely known for their reliability and versatility, undergo a meticulous manufacturing process to ensure their quality and performance. These capacitors are crafted using a blend of precision and technology, creating essential components for a multitude of electronic devices. Let's delve into the step-by-step process of crafting these remarkable capacitors.

Film Cutting:

The process begins with precision film cutting. Metal foils, typically aluminum, are cut into the desired width using specialized machines. The cutting is done with utmost care to ensure smooth edges and a clean appearance.

Winding:

The metal foils are then wound together with plastic film, forming the core of the capacitor. This winding process demands precision to meet design requirements. The wound core should have a smooth surface, clean film, appropriate tension, and free from scratches.

Thermal Pressing:

The wound core is subjected to controlled heat and pressure using a thermal press machine. This flattens the core and enhances its structural integrity. The pressing should be done with care to prevent loosening of the core or layer separation.

Taping:

The flattened core is woven into a coil and secured using adhesive tape. The tape should have good adhesion and should not cover the ends of the core.

Metal Spraying:

A thin layer of metal is sprayed onto the ends of the core. This metal spraying enhances conductivity and electrical performance. Proper parameters are chosen for the spraying process, ensuring the right thickness and adhesion.

Trimming:

Excess metal and tape are removed, and the core is cleaned using a drum machine. This step ensures the capacitor's precise dimensions and smooth finish.

Vacuum Drying:

The capacitor undergoes vacuum drying to improve its electrical performance. The drying parameters are carefully set to achieve optimal results.

Welding:

Welding is performed to enhance the capacitor's electrical characteristics. This involves carefully setting the appropriate voltage to achieve accurate and reliable results.

Soldering:

Wire leads are soldered onto the capacitor core. The soldering process demands precision to ensure smooth solder joints without damage to the metal film.

Insertion:

The core is inserted into a plastic housing, with the metal film positioned correctly within the casing.

Encapsulation:

The housing is then filled with encapsulation material, providing insulation and protection. The encapsulation material is mixed and applied carefully to ensure a bubble-free and accurate finish.

Printing:

Relevant information is printed onto the surface of the capacitor. Printing should be clear, centered, and resistant to fading.

Quality Inspection:

Each capacitor undergoes a stringent quality inspection to check capacitance, dissipation factor, voltage resistance, and insulation resistance. The appearance and dimensions are also verified to ensure a smooth and precise finish.

UF Capacitors is established since 1995. as one of the professional China plastic film capacitors manufacturer and China capacitors factory, we are strong in complete management, strict quality control system, and excellent sales service. UF capacitors film capacitors produce both metallized film polyester capacitors and metallized film polypropylene with series as following:

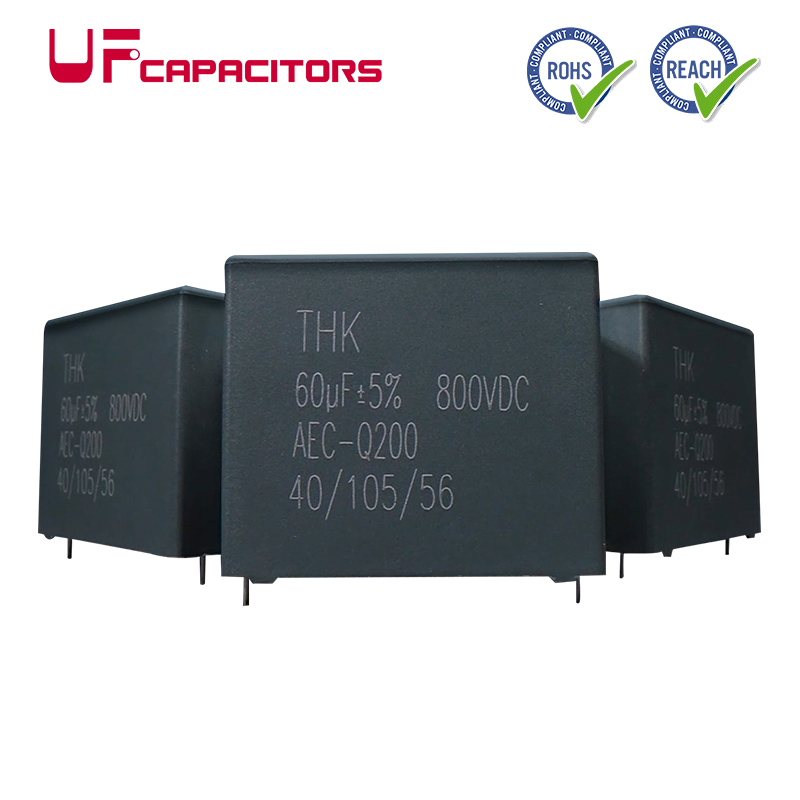

DC Link Film Capacitor

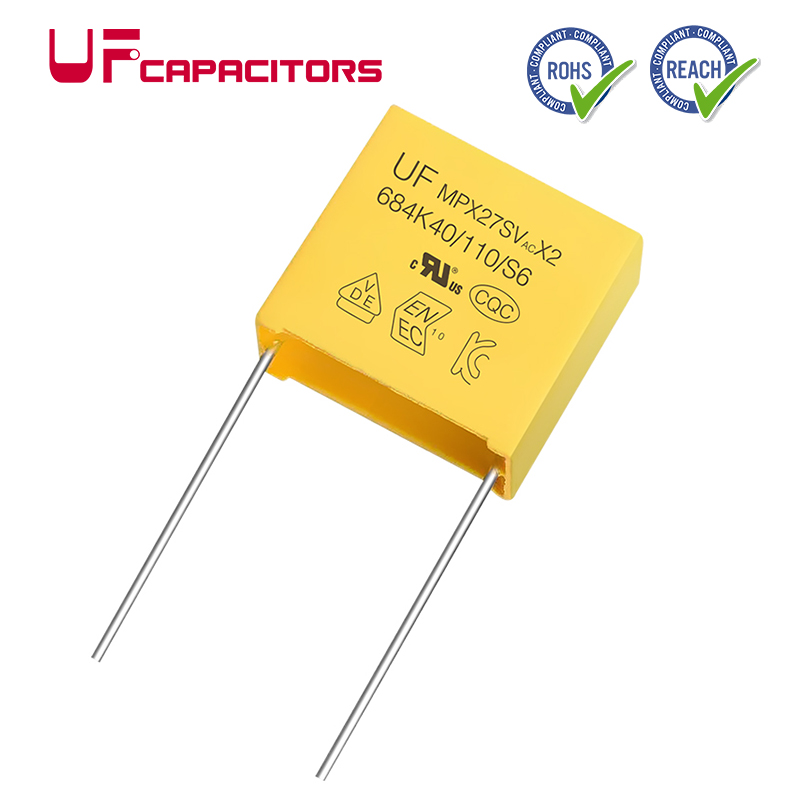

X2 Safety Capacitor

Heavy Duty X2 Safety Capacitors for Power Meter (THB series)

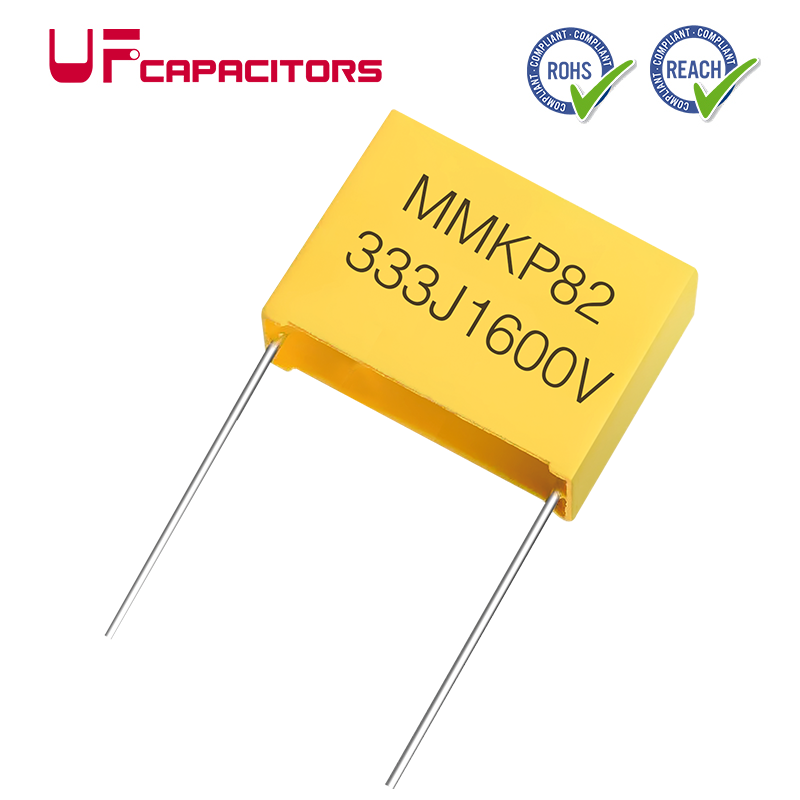

MMKP82 Double Sided Metallized Polypropylene Film Capacitor

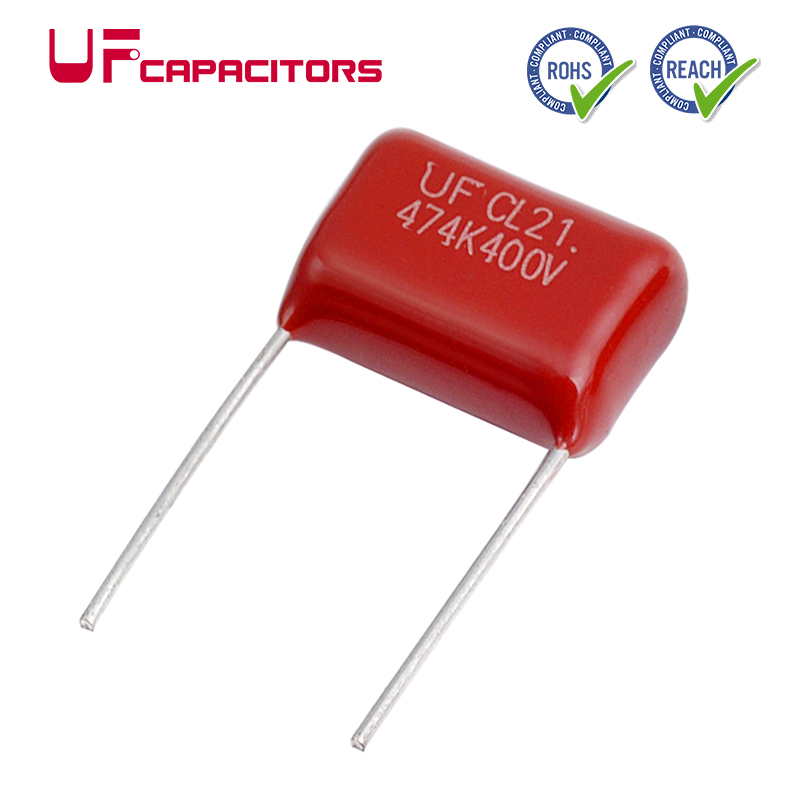

CL21 Metallized Polyester Film Capacitor

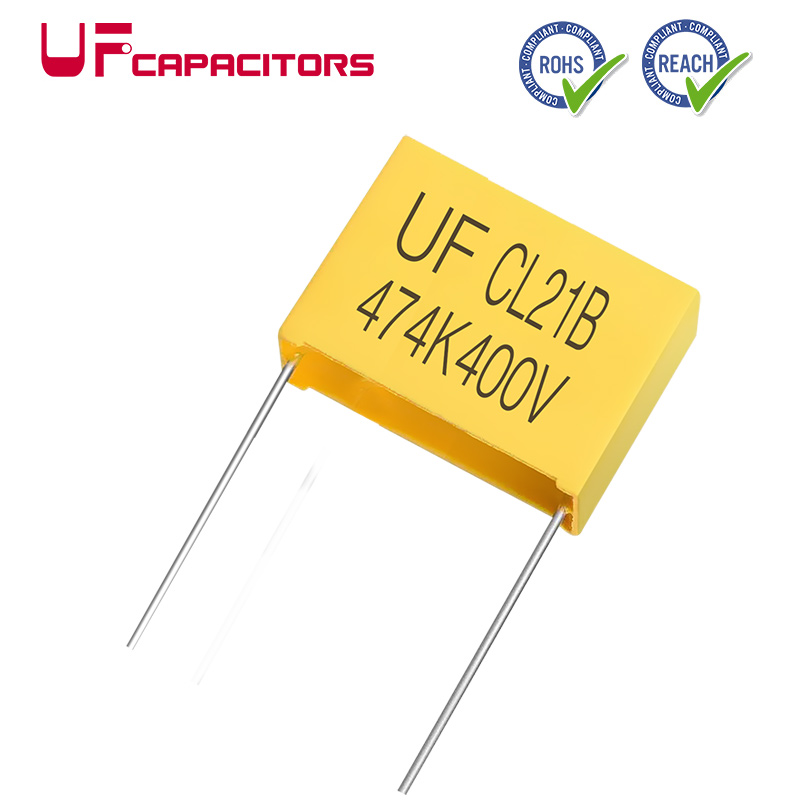

CL21B Polyester Box Type Film Capacitor

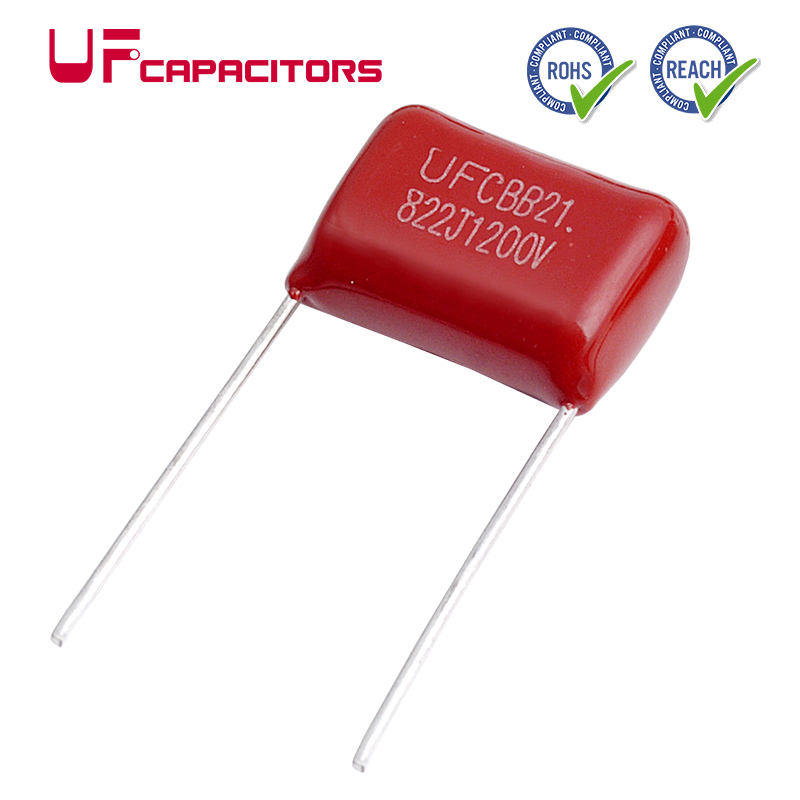

CBB21 Metalized Polypropylene Film Capacitor

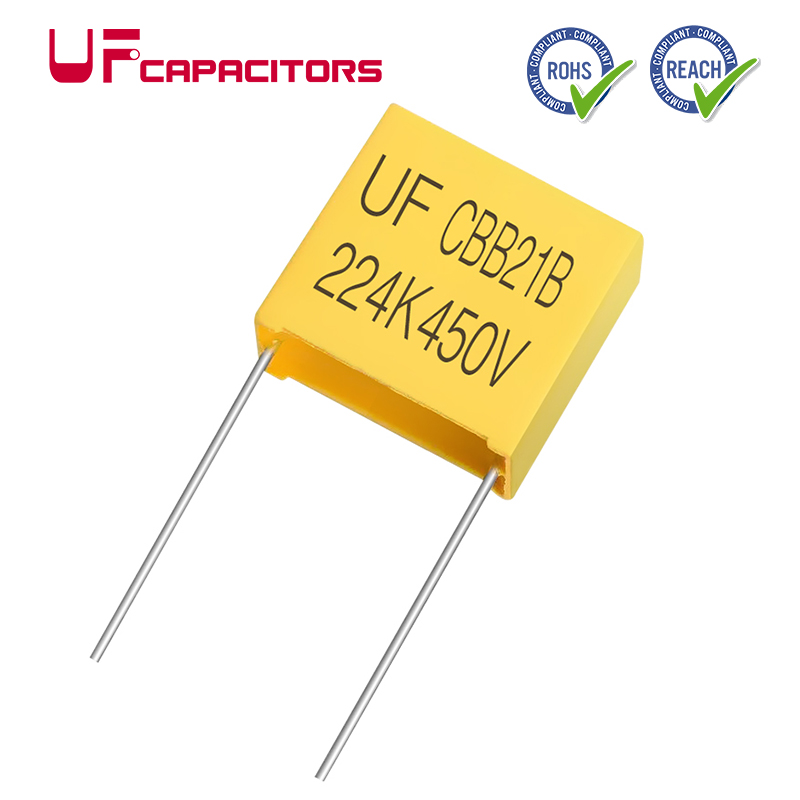

CBB21B Polypropylene Box Type Film Capacitor

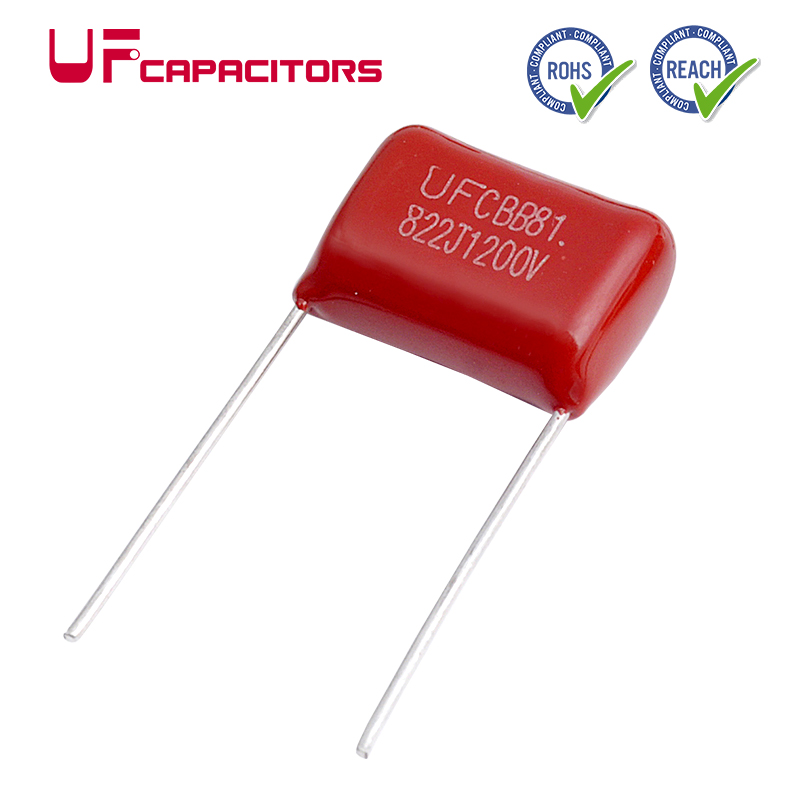

CBB81 High Voltage Polypropylene Film Capacitor

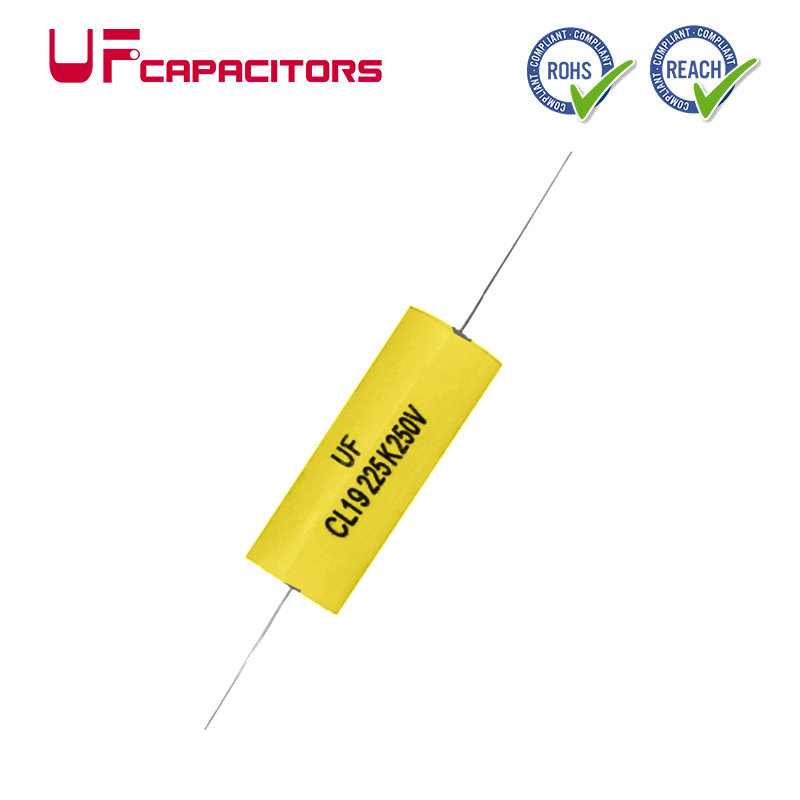

Axial Lead Film Capacitor

CL23 Mini Box Metallized Polyester Film Capacitor

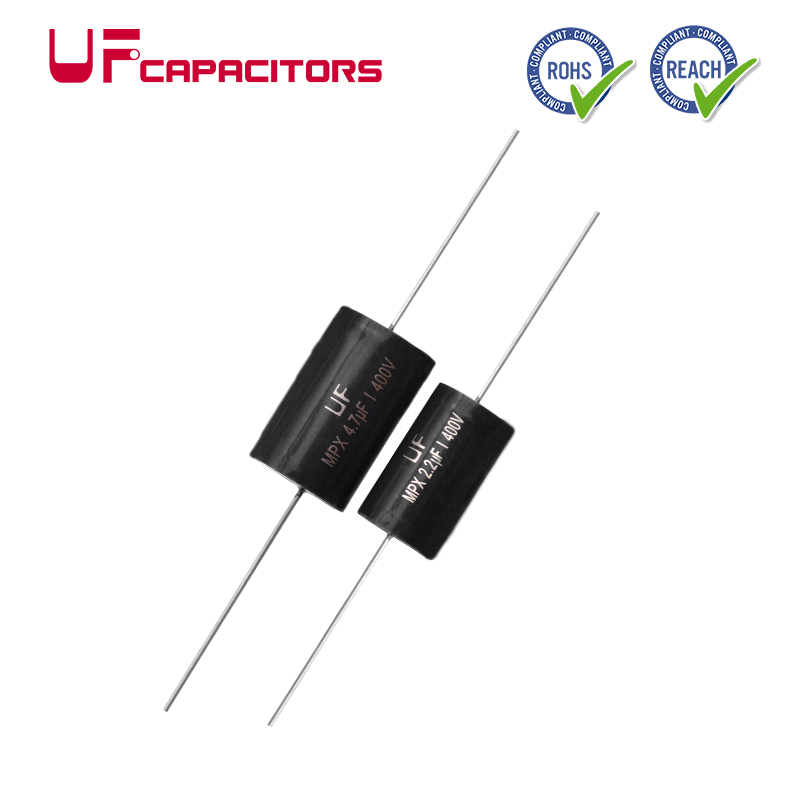

MPX Audio Premium Metallized Polypropylene Film Capacitor

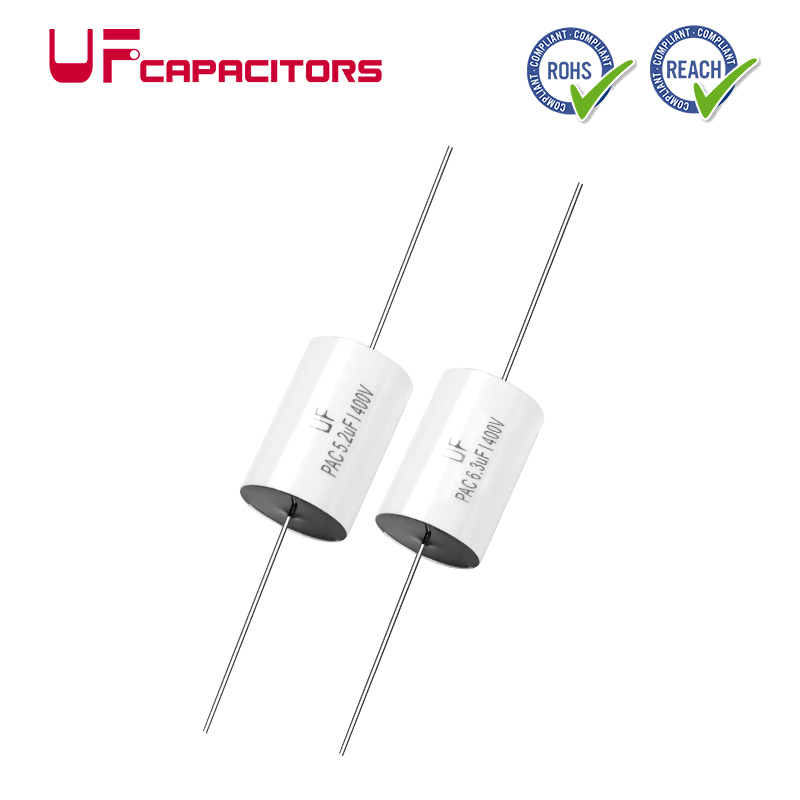

PAC Pulse Audio Premium Metallized Polypropylene Film Capacitor
