The Difference Between Ordinary and High-Frequency Electrolytic Capacitors

The Importance of Electrolytic Capacitors



The basic structure of an electrolytic capacitor is an aluminum shell on the outside, which is filled with electrolyte and leads to two positive and negative electrodes. This constitutes the basic structure of the electrolytic capacitor. Its main function is filtering, that is, reducing ripple and stabilizing the capacitor. Current is widely used in products such as switching power supplies. Its working process can be understood as the process of charging and discharging. Therefore, for an ideal electrolytic capacitor, it does not consume energy. Not consuming energy means that it will not generate heat, but Actual capacitors will generate heat due to the presence of internal resistance.



Classification of Electrolytic Capacitors



At present, there are two main types of electrolytic capacitors, one is aluminum electrolytic capacitors, and the other is tantalum electrolytic capacitors. The main difference between the two is that the anode material is different. Both are electrolytic capacitors that are commonly used in circuits. As electrolytic capacitors , its capacity is generally above 1μF, but capacitors with a capacity of 1μF are not necessarily electrolytic capacitors. There are also other capacitors, such as monolithic capacitors, polyester capacitors, etc.



Ordinary Electrolytic Capacitors

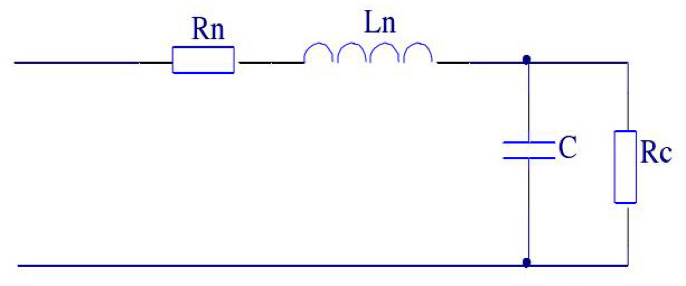

When it comes to ordinary electrolytic capacitors, the most commonly used ones are aluminum electrolytic capacitors. This capacitor has a large capacity and is prone to leakage. It is suitable for filtering. However, this capacitor has a large internal resistance. The following figure is the capacitor equivalent circuit diagram. Among them: Rc is the leakage resistance, Ln is the parasitic inductance, and Rn is the loss resistance caused by other reasons.

Capacitor Equivalent Circuit Diagram

Aluminum electrolytic capacitors have the opportunity to resonate when the frequency is higher than a certain condition. Before that, they are capacitive. When they exceed this frequency, they become inductive. Therefore, in our actual circuit, if the frequency is not high, the operating frequency is generally lower than the resonant frequency of the capacitor itself. 1/10. at this time we can ignore the impact of the parasitic effect of the capacitor on the circuit.



High Frequency Electrolytic Capacitors



Compared with ordinary electrolytic capacitors, high-frequency electrolytic capacitors are suitable for high-frequency applications. The capacity of high-frequency capacitors generally cannot be as large as that of ordinary electrolytic capacitors. High-frequency capacitors are suitable for applications with higher frequencies. Circuits, such as the filtering of switching power supplies and the output filter electrolytic capacitors in switching power supplies, have output voltage frequencies as high as tens of kHz or even tens of MHz. For ordinary electrolytic capacitors, they have long been inductive at this frequency, but high-frequency capacitors But it can play a very good filtering role.
