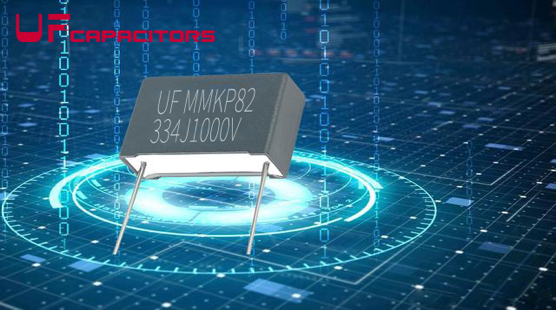

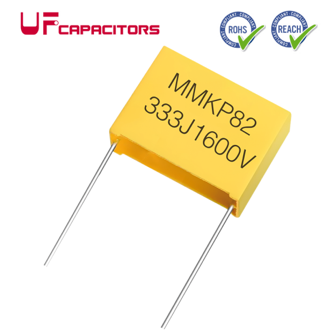

UFcapacitors MMKP82 is a double-sided metallized polypropylene film capacitor , designed as an advanced successor to traditional CBB81 capacitors. It combines ultra-compact dimensions with superior electrical performance, making it ideal for high-voltage, high-frequency, and pulse applications in modern power electronics.
Constructed with dual-sided metallized polypropylene film + dielectric polypropylene (PP) film, enabling higher current density and reduced volume compared to single-sided CBB81 capacitors.
Self-healing properties ensure long-term reliability by automatically isolating defects, minimizing failure risks.
Enhanced Electrical Performance
Ratedvoltage: 250VDC, 400VDC, 630VDC, 1000V DC, 1600V, 2000V DC DCsuitable for demanding circuits.
Capacitance Range: 220pF~3.9uF
High pulse handling: Superior dv/dt and di/dt tolerance, ideal for snubber, resonant, and energy absorption circuits.
Robust Environmental Adaptability
Operating temperature range: -40°C to +105°C, with stable capacitance under thermal stress.
Flame-retardant epoxy resin encapsulation and moisture resistance for harsh environments.
Space-Saving Design
Up to 50% smaller footprint than CBB81 at equivalent capacitance and voltage ratings, optimizing PCB layout in compact devices.
Technical Specifications
|
Parameter |
Value/Range |
|
Capacitance Range |
22pF – 3.9μF |
|
Tolerance |
±2% (G), ±3% (H),±5% (J),±10% (K),±20% (M) |
|
Insulation Resistance |
≥50.000MΩ (CR ≤0.33μF) |
|
Temperature Coefficient |
-40°C to +105°C |
Power Electronics:
LLC/LCC resonant circuits in GaN-based fast chargers and server power supplies IGBT/SiC snubber circuits for inverters, UPS, and welding equipment. Renewable Energy & Industrial Systems:
Solar inverters, EV charging stations, and motor drives. Pulse absorption in SCR rectifiers and DRC oscillation circuits. Consumer & Specialty Electronics:
High-power LED drivers, ultrasonic cleaners, and mining equipment power modules. Energy-efficient lighting (e.g., electronic ballasts, fluorescent lamps).
Reliability: Zero reported leakage or premature aging in decade-long field tests.
Cost Efficiency: Replaces bulkier CBB81 with equivalent performance at competitive pricing.
Upgrade to MMKP82 for next-generation power designs where miniaturization, high-frequency stability, and durability are non-negotiable. Contact us for samples or customized solutions tailored to your technical requirements.
