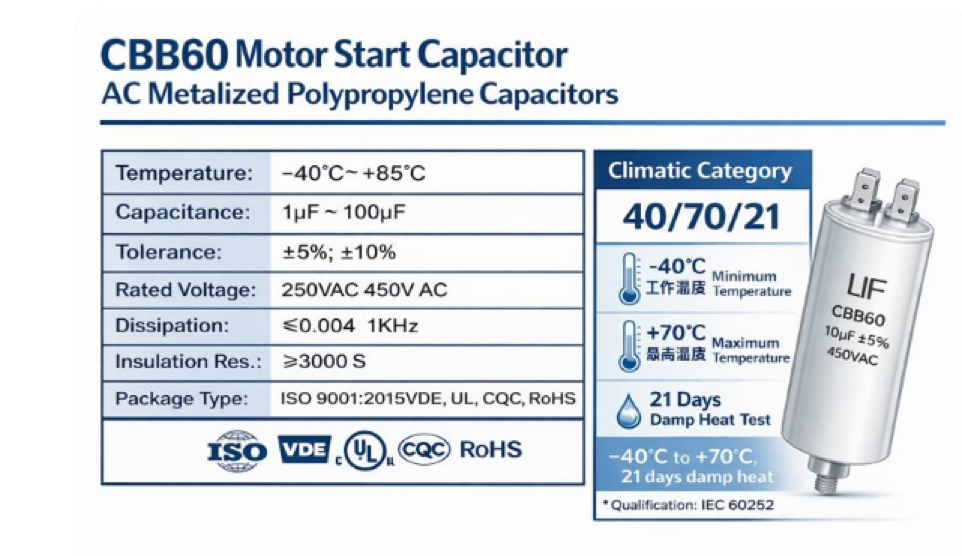

Many buyers and engineers read a motor capacitor datasheet, and they see one line like "Climatic Category: 40/70/21". But they are not sure what it means. Some people think it is only the working temperature. Actually, it is more than temperature. It is a reliability grade under temperature + humidity + time. If you choose wrong grade, the capacitor may get capacity drop, insulation aging, and shorter life in real motor work. #IEC60252 #IEC60068
Climatic Category is a standard way to describe how a capacitor can survive different environment conditions. It is used a lot for motor capacitors, because motors often work close to heat source, and also meet high humidity (like air conditioner, fan, and water pump). In simple words: it tells you the 'environment endurance level' of the capacitor, not only one temperature number.

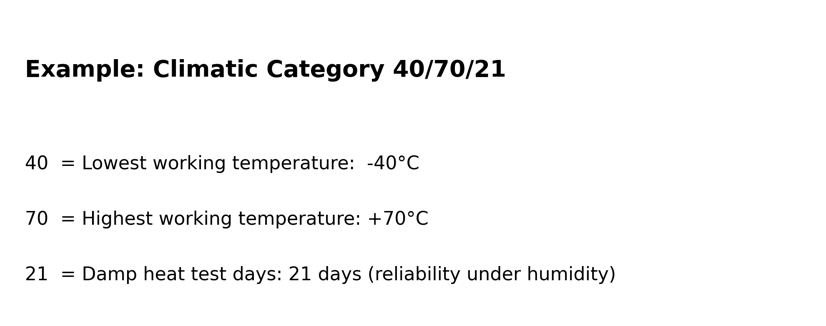

Figure 1. How to read 40/70/21
The writing format is like: A/B/C. A is the lowest working temperature, B is the highest working temperature, and C is the damp heat test days. For example 40/70/21 means the capacitor is tested and rated for -40°C to +70°C, and it can keep reliable performance under damp heat test for 21 days. This is why Climatic Category is a 'combination index'.
In many motor capacitor datasheets, you may see grades like 25/70/21, 40/70/21, 40/85/21, 40/100/21, or even 40/110/56. Normally, higher max temperature and longer damp heat days mean higher grade and higher cost. So you should match it to your real application, not always choose the cheapest one. #HVAC #industrial_motor
Below are some typical scenarios. You can use them as a quick reference when selecting a motor capacitor.

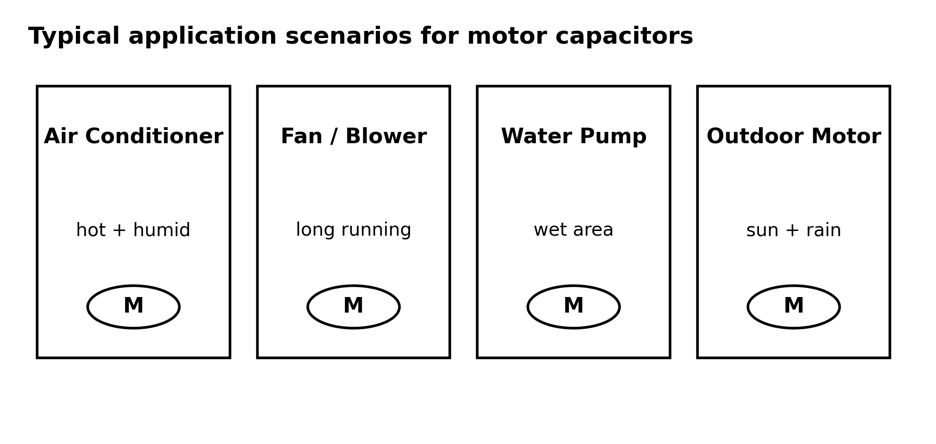

Figure 2. Typical application scenarios
Scenario A: Air conditioner compressor / outdoor unit
Usually hot and humid, and the unit may stay outdoor. If the capacitor is near the motor, temperature is higher. Common choice is 40/70/21 or 40/85/21. If customer needs higher reliability, choose higher grade. #air_conditioner #outdoor
Scenario B: Fan and blower (continuous running)
Fans may run many hours per day. Long running time means heat accumulation. If the factory is humid, damp heat resistance matters. Choose stable grade to avoid early capacity drop. #fan #blower
Scenario C: Water pump (wet area)
Water pump is close to water and moisture. Even if temperature is not extreme, humidity stress is strong. So Climatic Category helps you check if the capacitor is designed for damp heat test. #water_pump #humidity
Scenario D: Outdoor motor (sun + rain)
Outdoor motors can face sun heating in daytime and wet air at night. If your market has big temperature change and strong humidity, consider higher grade like 40/85/21 or above, based on your design target. #outdoor_motor
Many people mix these two. Operating Temperature Range means the device can work at that temperature. But Climatic Category is a result of endurance testing under temperature + humidity + time. So Climatic Category is more like 'how long it can stay reliable in harsh environment', not a moment ability. #reliability

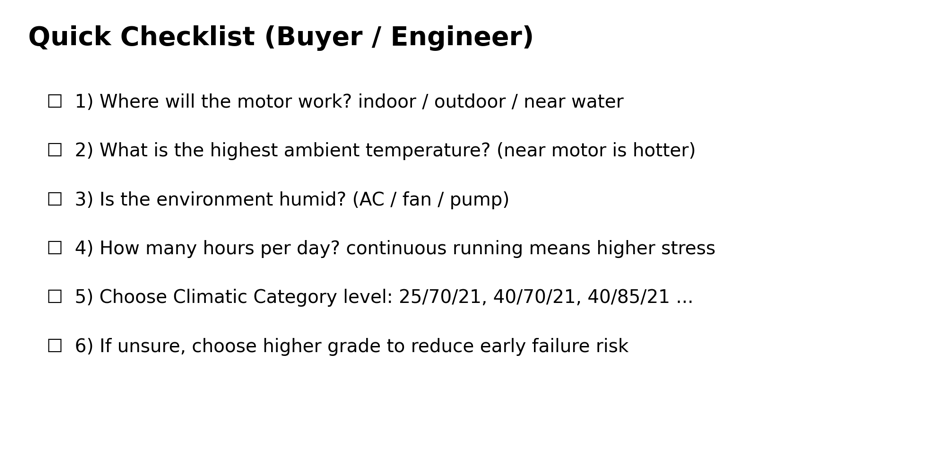

Figure 3. Simple selection checklist
If you are not sure, do not only focus on price. A motor capacitor failure may stop the whole motor system, and bring warranty cost. So choosing correct Climatic Category is a practical way to reduce risk.
If you are sourcing motor capacitors for AC / fan / pump, you can consider a stable supplier that can provide clear Climatic Category information on datasheet and can match your environment needs. For example, #UFcapacitorsMotorCapacitor can be selected by target Climatic Category, and used for common motor applications. When you request a quotation, you can directly tell your needed grade like "40/70/21" or "40/85/21", and share your working temperature and humidity. #motor_run_capacitor #motor_start_capacitor
Q1: Does higher Climatic Category always mean better?
Higher grade usually means better endurance, but it also may cost more. The best way is match the grade to your real environment. For normal indoor home appliance, 25/70/21 may be enough. For industrial motor or outdoor, higher grade is safer.
Q2: Why damp heat test days (21 or 56) is important?
Because many motor applications are humid and long running. Humidity can speed up insulation aging and material degradation. More test days means stronger proof in damp heat condition.
Q3: What should I send to supplier?
Send your motor application, voltage and capacitance need, working temperature, humidity level, and your target Climatic Category (example 40/70/21). This helps supplier recommend correct product faster. #capacitor_supplier
Conclusion
Climatic Category is a simple but useful label for motor capacitors. It helps you understand reliability under real environment: temperature + humidity + time. When you choose a capacitor for AC, fan, pump, or outdoor motor, use Climatic Category to reduce early failure risk and improve product life. #climatic_category #IEC60252
