Tantalum Capacitor Derating Select Correct Voltage, Avoid Fire Risk

What Is Derating?

Keep the actual operating voltage of a tantalum capacitor significantly below its rated voltage.

Example: Apply only 5V to a 10V capacitor. This isn't waste — it's the core technique for ensuring long-term reliability.

Why Must You Derate?

1. Prevent power-on surge failure

Power-on creates a large inrush current. If the rated voltage is barely enough, the surge will punch through the capacitor.

Reflow soldering heat can cause microscopic internal damage — invisible normally, but fails immediately at power-on.

2. Higher temperature = lower voltage withstand

• 25°C: 10V capacitor handles 10V
• 85°C: May handle only 8V
• 125°C: May struggle with 6V

High-temperature environments require more aggressive derating.

Derating Table for Three Tantalum Types

Type	Analogy	Derating	Reason
MnO₂ Solid	Gasoline tank	50%	Failure may cause fire
Polymer Solid	Water bucket	80%~90%	Failure = harmless short, no fire
Wet	Sponge	80%~90%	Self-healing capability

Example (circuit operating at 5V):

• MnO₂ type: Minimum rated = 5V ÷ 50% = 10V
• Polymer type: Minimum rated = 5V ÷ 80% = 6.25V (select 6.3V)

Low-impedance circuits (battery direct supply, large capacitor regulator output): For MnO₂, use 1/3 derating — 5V circuit needs 16V or higher.

Two Deadly Mistakes

Mistake 1: Using a 6.3V capacitor in a 5V circuit

Consequence: Shorts instantly at power-on. Severe cases = smoke and fire.

Correct approach:

• MnO₂ type: Select at least 10V
• Polymer type: 6.3V is fine

Mistake 2: Ignoring circuit impedance

Low-impedance circuits have massive inrush current. Even 50% derating may fail.

Correct approach: Add a 1Ω series resistor to limit inrush current.

One Sentence Mnemonic

"Old type, cut in half; new type, a tenth off"

• Old type (MnO₂): Operating voltage ≤ Rated voltage × 50%
• New type (Polymer): Operating voltage ≤ Rated voltage × 80%~90%

Quick Selection Table

Circuit Voltage	MnO₂ Minimum Rated	Polymer Minimum Rated
1.8V	3.3V~4V	2.5V
3.3V	6.3V~10V	4V
5V	10V~16V	6.3V
12V	25V	16V
24V	50V	30V

Five Practical Tips

1. Prefer polymer type: Pricier but looser derating (80%~90% vs 50%) and safer failure mode.
2. Check manufacturer datasheet: Different brands (KEMET, AVX, Vishay) have slight variations.
3. More conservative at high temperature: Above 85°C, consult temperature-voltage curve in datasheet.
4. Mind polarity: Tantalum capacitors are polarized. Reverse = guaranteed failure.
5. Add series resistor for low-Z: Add 1Ω resistor when possible — dramatically reduces failure risk.

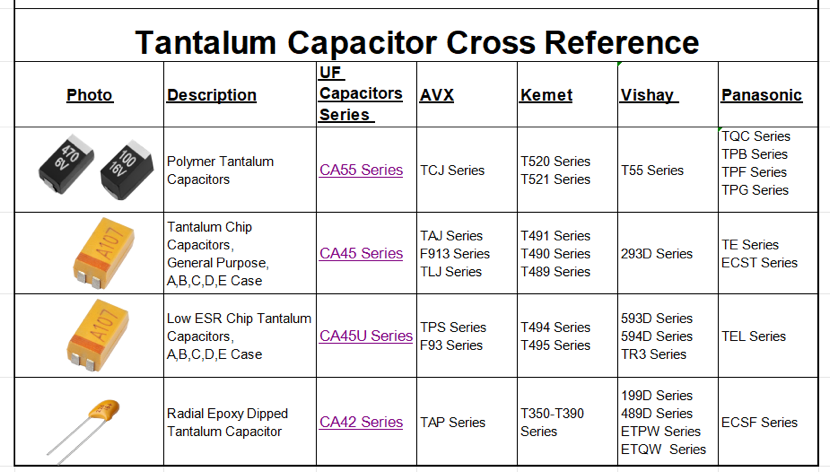

The following is a Tantalum Capacitor Cross-Reference & Equivalent Series Guide, covering our UF series and corresponding product lines from AVX, Kemet, Vishay, and Panasonic.
