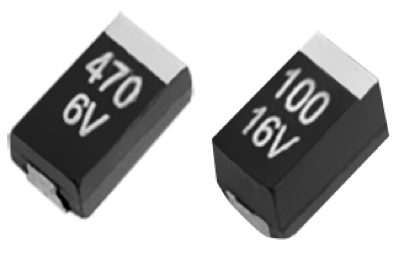

In the relentless pursuit of miniaturization and performance in modern electronics, component selection is critical. Design engineers face the constant challenge of balancing size, reliability, electrical performance, and cost. For demanding applications requiring stable power in a compact footprint, CA55 Polymer Tantalum Capacitors emerge as a superior solution. These advanced components address the limitations of traditional MnO₂ tantalum and multilayer ceramic capacitors (MLCCs), offering a unique blend of safety, efficiency, and robustness. This article explores the standoutfeaturesand diverseapplicationsof CA55 series capacitors, positioning them as ideal replacements for popular series likeAVX TCJ,Kemet T520.andVishay T55.
The CA55 series distinguishes itself through a set of engineered features that directly enhance circuit reliability and performance:
Enhanced Safety: The use of a conductive polymer electrode reduces ignition failure mode, a significant safety improvement over traditional MnO₂ tantalum capacitors, leading to more robust and reliable end-products.
Superior Electrical Performance: They exhibit alower ESR (Equivalent Series Resistance), which translates to less energy loss as heat and enables high ripple handlingcapability, crucial for power-intensive circuits.
Exceptional Stability: These capacitors offer stable capacitance acrosstemperature and voltage fluctuations, ensuring consistent performance under varying operating conditions. Furthermore, they feature high frequency capacitance retention, making them effective even at elevated frequencies.
Design Advantages: The series is volumetrically efficient, providing high capacitance in a small case size—a vital asset for miniaturized designs. Unlike some capacitors, they exhibit no aging effects,meaning their capacitance and ESR remain stable over time, reducing long-term performance drift.
The feature set of CA55 Polymer Tantalum Capacitors makes them exceptionally versatile across a broad spectrum of modern electronics:
Power Management: Ideal forDC/DC converters,power supply inputs, and voltage regulation on high voltage applications such as 12V to 48V power input rails. Their high ripple handling is key here.
Portable & Consumer Electronics: Perfect forportable electronicsincludingnotebook PCs, displays, SSDs, HDDs and USBs, digital cameras, GPS navigation systems, smart phones, and MP3players. Their volumetric efficiency suitsdensely populated circuits with space restrictions.
Audio & Telecommunications: Used in audio/sound circuits for mobile phones, base stations, and other devices, as well as in telecommunications infrastructure and WiFi modules.
Computing & High-Performance Systems: Essential for microprocessor decoupling,high speed servers, and various consumer electronics like analytical and test equipment.
For engineers looking to upgrade designs or source alternatives, the CA55 Polymer Tantalum Capacitor series serves as a reliable and high-performance direct replacement for the AVX TCJ series, Kemet T520 series, and Vishay T55 series. This interchangeability offers flexibility in the supply chain and access to the enhanced safety and performance benefits of advanced conductive polymer technology.
CA55 Polymer Tantalum Capacitors represent a significant leap forward in capacitor technology. By combining the volumetric efficiency of tantalum with the safety and low ESR of conductive polymer, they solve critical design challenges in today's electronics. Whether you are designing a compact wearable device, a powerful server, or a robust automotive system, integrating CA55 capacitors can lead to gains in power integrity, board space savings, and overall system reliability. For your next project requiring stable, efficient, and compact capacitive solutions, consider the CA55 series as a premier choice.
